Engine Rebuild For Aston Martins

Engine Rebuild Procedure

Engine Reconditioning for Aston Martins

JMB Services Engine Rebuilds for all Classic Heritage Aston Martins, DB4, DB5, DB6, DBS & V8.

Carried out within a dedicated engine build and development facility, with a comprehensive production engineering workshop, operated by highly competent engineers fully experienced in Classic Heritage Aston Martin engine development & component production.

CONTACT US WATCH VIDEOS

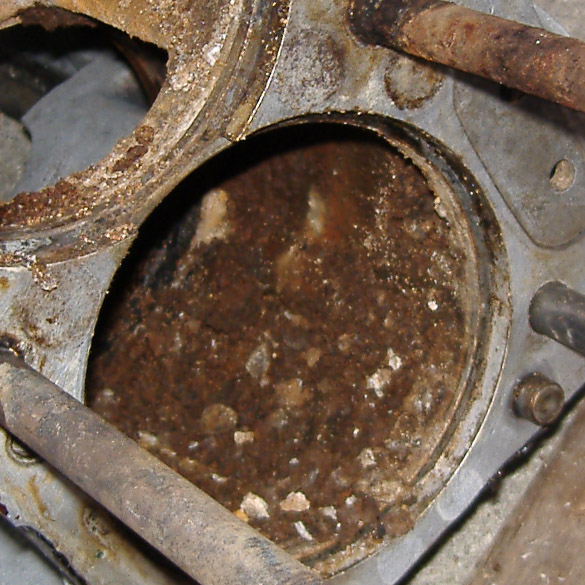

Stage 1

Dissemble, Cleaning, Inspection

Initially the engine is externally inspected, completely dissembled into all its basic component parts which are further examined, then everything is thoroughly cleaned with a hot detergent wash and high pressure rinsing.

Parts are submerged in a special de-contamination tank for 12 hours, then more high pressure rinsing, an additional chemical dip process brings components back to as new appearance.

Finally a pressure test to check casting porosity of the head(s) for the main in depth inspection.

CONTACT US

Stage #1 Dissemble, Cleaning & Inspection

Stage #2 Analysis, Customer Consultation

Stage 2

Analysis & Customer Consultation

A comprehensive report is compiled on the overall condition of all components with our recommendations as to what action will be required to continue. The client is informed of our assessment and invited to discuss all the relevant proposals and options. A non-returnable fee is charged for this essential section of the service, whether we continue or not.

With full client approval the project proceeds starting with head(s) and block repairs if necessary. All the plated items (approximately 140/150 individual pieces) are prepared for re-polishing or plating, either nickel or chrome as original, carburetors are either specialist rebuilt or replaced.

CONTACT US

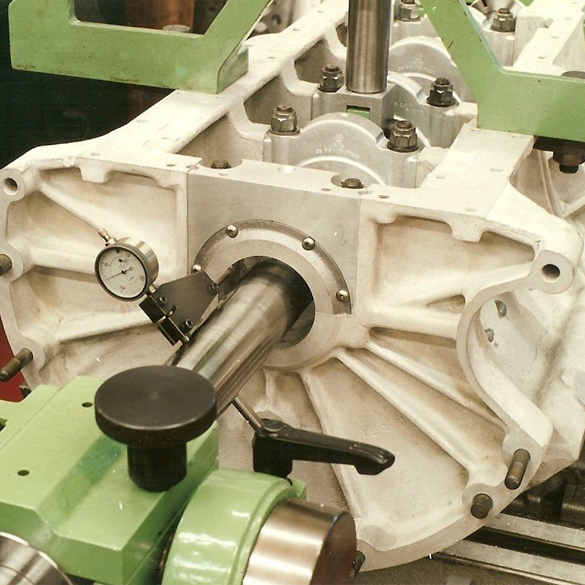

Stage 3

Preparation & Machining

The block meanwhile is prepared with new JMB designed liners (4 new liner seals replace the 2 as original) fitted and clamped for 12 hours, the torque plate is then re-torqued and the block bored and honed to finished size through the torque plate. The block is set up checked for square and line bored back to original specification, all the attached components and their contact surfaces are checked and given a minimum skim, then with a thorough clean and dry it is finally mounted on an engine stand, sealed until assembly. The crankshaft, conrods and all relative parts are crack tested to ensure non failure. The crankshaft is then balanced, (if required will be ground to the next undersize, 5 tenths tolerance is the factory spec, we reduce this to 3 tenths), the flywheel, clutch, front damper, pistons and conrods are also balanced. Piston rings are individually gapped to suit each bore and fitted to the relevant piston.

CONTACT US

Stage #3 Preparation & Machining

Stage #4 Cylinder Heads & Ancillaries

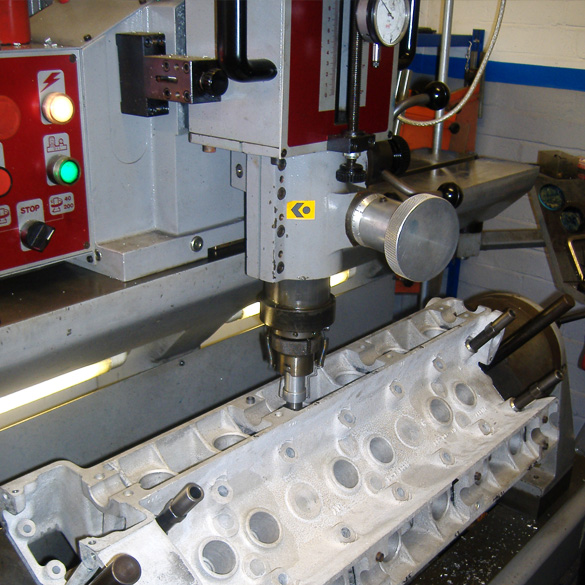

Stage 4

Cylinder Heads & Ancillaries

The complete cylinder head work and lead-free preparation is included, detailed as a separate procedure found by following the link to the page "Cylinder Head Rebuild For Aston Martins".

All ancillary components are thoroughly cleaned and rebuilt with our improvements.

CONTACT US

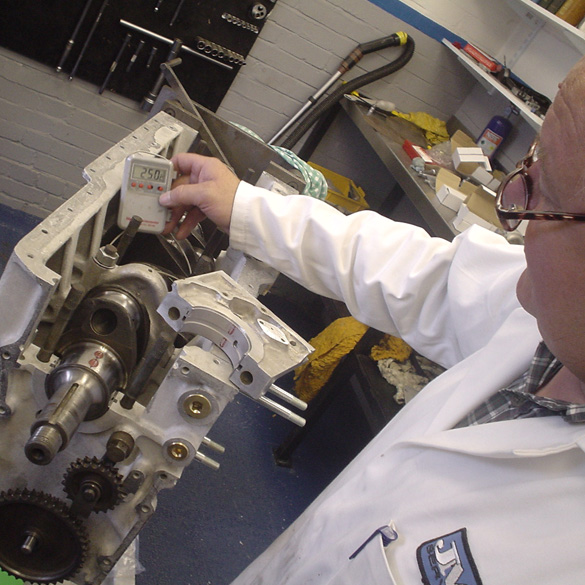

Stage 5

New Components Fitted

Full gasket sets.
Filters, pipes, clips and connectors.
Front torsion vibration damper (balanced).
Set of JMB special head studs and thick washers.
Timing & Oil pump chains, tensioners and guides.
Sets of selected bearings - main, thrust and big end.
Every other stud (except re-useable main bearing studs).
Set of special HT leads, Distributor cap, Rotor arm and NGK plugs.
Set of Ross forged 3 ring pistons complete (balanced and graded).
Every nut, washer and bolt (drilled, lock-wired and specials where required).

CONTACT US

Stage #5 New Components Fitted

Stage #6 New Custom Parts

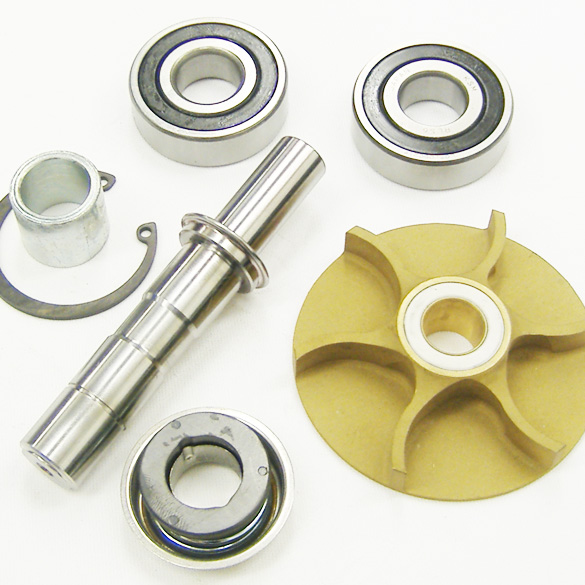

Stage 6

New Custom Parts (if requested)

Water pump Hi-Flow impeller and ceramic seal upgrade for increased flow.

Oil pump re-machined to take 1.150 " rotor assembly for maximum capacity.

Distributor fitted with discreet electronic ignition module for consistent spark, yet retain its original appearance.

CONTACT US

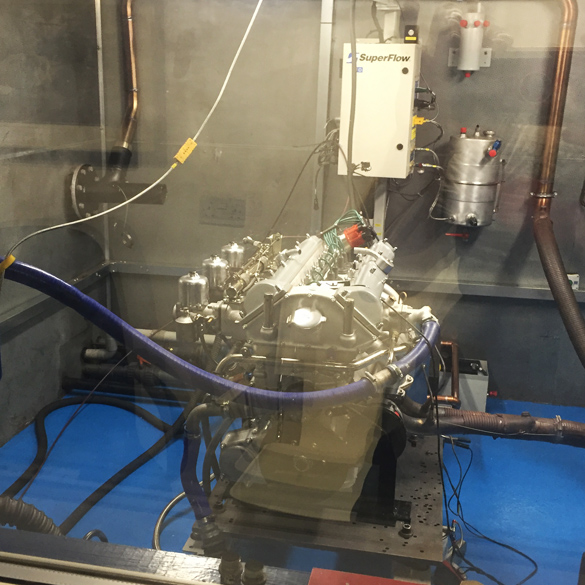

Stage 7

Dyno Testing & Report

When the engine build is complete and operating correctly, the final process is a full test run on the engine dyno, with a print out of performance figures for the report.

If requested a photographic record can be undertaken to accompany the fully detailed progress document, which is presented when the engine is signed off and returned.
